🔌 Male and female connectors work together to create a connection between compatible devices. In vehicle surveillance systems, 4-pin aviation connectors are used in certain camera cables, MDVR systems, and vehicle monitors.
Whether you're installing cameras in a bus, truck, or commercial vehicle, understanding the difference between male and female connectors helps you select the right cable for your application.
🔍 What Is a Male 4-Pin Aviation Connector?

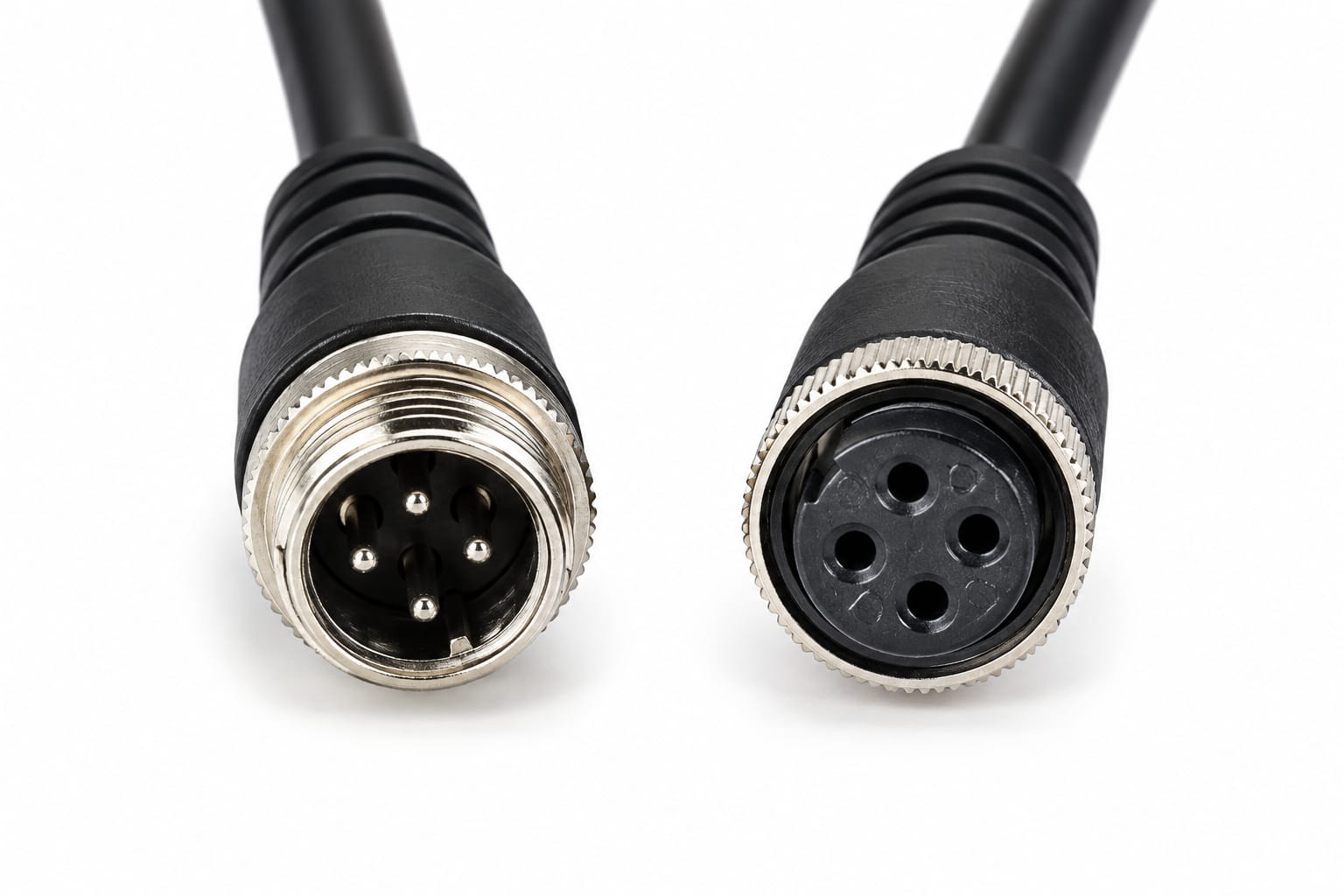

A male 4-pin aviation connector typically has four projecting contact pins designed to fit a compatible female connector. It is commonly found on certain vehicle camera cables and connection assemblies.
Its exact function depends on the cable wiring and the equipment it connects to.
🔍 What Is a Female 4-Pin Aviation Connector?
A female 4-pin aviation connector has four receptacle contacts designed to receive the matching male connector. It provides the corresponding connection point in a compatible cable or device.
Both connectors must match in physical design and electrical configuration to work correctly.
⚙️ Male vs Female Aviation Connector
Feature
Male Connector
Female Connector
Contact design
Projecting pins
Receptacle contacts
Connection role
Fits into the matching female connector
Receives the matching male connector
Common applications
Compatible camera cables and equipment connections
Compatible camera cables and equipment connections
Compatibility
Must match the female connector
Must match the male connector
🚛 Where Are These Connectors Used?
📹 1. MDVR and Mobile DVR Systems
Male and female aviation connectors can be used in compatible camera cables that connect vehicle cameras to mobile recording systems.
🚌 2. Bus Camera Systems
They support suitable camera connections in school buses, passenger buses, and other commercial vehicles.
🚚 3. Truck and Fleet Surveillance
Compatible connectors help connect cameras and recording equipment in vehicle monitoring installations.
↩️ 4. Reverse Camera Systems
Certain reverse-camera setups use aviation-style connectors to link a compatible rear camera with a display or recording device.
🖥️ 5. TFT and Dashboard Monitors
These connectors may be used in vehicle camera and monitor systems where the connector, pinout, and signal requirements match.
💡 How to Choose the Correct Connector
Before purchasing a male or female 4-pin aviation connector, check these important points:
🔹 Connector gender: Confirm whether the equipment requires a male or female connector.
🔹 Physical compatibility: Check the connector size, keying, and locking mechanism.
🔹 Pin configuration: Ensure the wiring matches the connected devices.
🔹 Equipment compatibility: Verify the camera, MDVR, and monitor specifications.
🔹 Cable length: Select a suitable length for the installation.
🔹 Electrical requirements: Check the supported signal and power specifications.
⚠️ Important: A four-pin male connector will not necessarily work with every four-pin female connector. Similar-looking connectors can have different pinouts and electrical requirements.
