🚛 Looking for a 4-pin camera cable for your vehicle monitoring system? A reliable cable connection is an important part of connecting vehicle cameras to compatible monitors, Mobile DVRs (MDVRs) and recording systems.
The TVS Security 4-Pin Male-to-Female Camera Cable is designed for vehicle camera connection applications where a compatible 4-pin connector is required. It can be considered for bus and truck camera installations, reverse camera systems, dashboard monitors and TFT monitor setups, subject to connector and system compatibility.
Whether you are installing a vehicle surveillance system or replacing an existing cable, choosing the correct connector type and cable configuration is essential for a reliable installation.
🔌 What Is a 4-Pin Camera Cable?
A 4-pin camera cable is a connecting cable that uses a four-pin connector to interface compatible cameras with vehicle monitoring or recording equipment.
Depending on the system design and pin configuration, a 4-pin cable may carry video, audio, power and ground signals through a single connection.

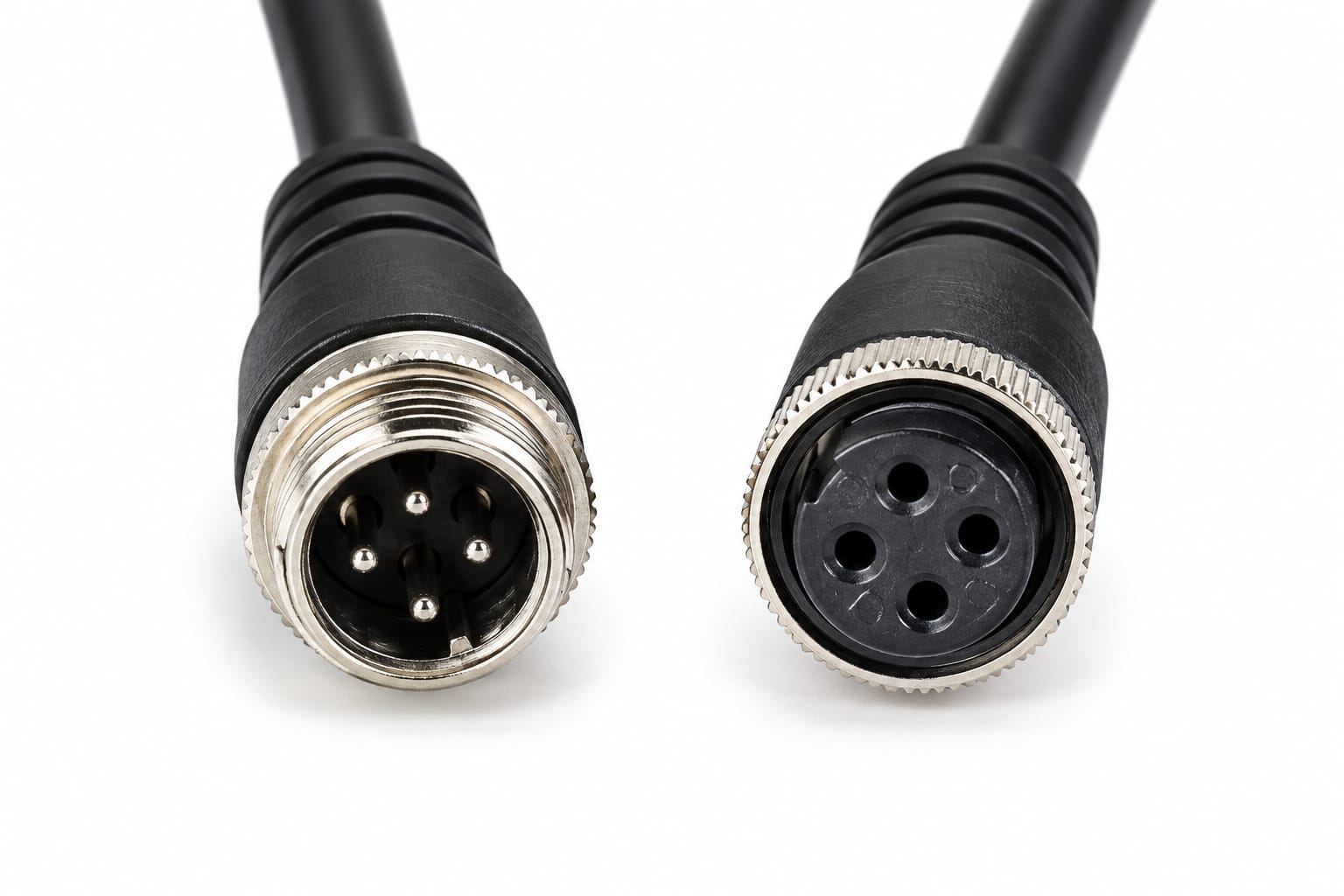

The cable shown here features 4-pin male and 4-pin female connectors, making it suitable for compatible camera connection and extension applications.
⭐ Key Product Highlights
🔌 4-Pin Male-to-Female Connectors – For compatible camera and monitoring connections.
🚚 Commercial Vehicle Applications – Suitable for relevant bus and truck camera installations.
📹 MDVR Connectivity – For compatible Mobile DVR and vehicle recording systems.
🖥️ Monitor Connection – Can be used with compatible vehicle monitors and TFT displays.
🚗 Reverse Camera Applications – For compatible rear-view camera and display systems.
🛠️ Convenient Installation – Helps connect compatible equipment without needing to create a custom cable for every installation.
Note: Video format, pinout, voltage, cable length and connector compatibility should be confirmed before installation.
🚛 Where Can a 4-Pin Camera Cable Be Used?
1️⃣ MDVR Cable for Buses and Trucks
Mobile Digital Video Recorders are used in vehicle surveillance systems to record footage from connected cameras.
A compatible 4-pin MDVR cable can connect a vehicle camera to an MDVR system, depending on the equipment's connector and wiring requirements.
Common applications include:
🚌 School buses and passenger buses
🚛 Heavy trucks and commercial vehicles
🚚 Logistics and transportation fleets
🚐 Vans and other commercial vehicles
📹 Mobile vehicle surveillance systems
2️⃣ Mobile DVR Camera Connection Cable
A Mobile DVR records video from compatible cameras installed in a moving vehicle. The camera cable forms part of the connection between the camera and recording unit.
A suitable Mobile DVR camera cable can help establish the required connection for vehicle surveillance and monitoring installations.
Before selecting the cable, check the MDVR model, camera interface, connector type and supported video format.
3️⃣ Reverse Camera Cable for Cars, Buses and Trucks
Reverse camera systems help drivers view the area behind a vehicle on a compatible display.
A 4-pin reverse camera cable can be used to connect a compatible rear-view camera to its monitor or recording equipment.
This can be useful in applications such as:
🚗 Car reverse camera systems
🚌 Bus rear-view monitoring
🚛 Truck reversing camera installations
🚚 Commercial vehicle parking assistance
The cable itself does not provide reversing assistance or display functionality; these depend on the connected camera, monitor and system configuration.
4️⃣ TFT Monitor and Dashboard Display Connection
Vehicle monitoring systems may use TFT LCD monitors to display camera footage inside the cabin.
A compatible TFT monitor cable or dashboard camera monitor cable can connect the camera system to the display when the interfaces match.
Potential applications include:
🖥️ TFT vehicle monitors
🚘 Dashboard-mounted displays
📹 Camera monitoring screens
🚛 MDVR-connected vehicle monitors
🚌 Multi-camera vehicle monitoring systems
Always verify whether the monitor accepts the camera's output format and connector configuration.
5️⃣ Vehicle Camera Extension and Replacement Cable
During installation or maintenance, a damaged or insufficiently long cable may need replacement or extension.
A compatible 4-pin male-to-female extension cable can help connect equipment where the original connector arrangement matches.
Before purchasing, check the required cable length, connector gender, pin assignment and installation environment.
⚙️ How to Choose the Right 4-Pin Camera Cable
Choosing the correct cable helps avoid connection problems and unnecessary installation work.
Consider these factors before ordering:
🔹 Connector type: Confirm that both the male and female connectors match your equipment.
🔹 Pin configuration: Four-pin connectors are not universally wired the same way. Confirm the pinout.
🔹 Camera compatibility: Check whether the camera uses the supported video signal and power requirements.
🔹 MDVR or monitor compatibility: Confirm that the recording unit or display supports the connection.
🔹 Cable length: Choose a length appropriate for the vehicle and installation route.
🔹 Installation environment: For buses and trucks, check whether the cable and connectors are suitable for vibration, moisture and the intended operating conditions.
🏢 Explore Vehicle Camera Accessories from TVS Security
TVS Security provides vehicle surveillance and monitoring solutions for applications including buses, trucks and commercial fleets.
If you need a 4-pin camera cable for MDVR, reverse camera, TFT monitor or dashboard display applications, contact the team with your equipment model and connector requirements to confirm compatibility.
🔗 Connect with TVS Security:
🌐 Official Website: https://www.tvssecurity.com/index
🚘 Explore Products: https://www.tvssecurity.com/products
📸 Instagram: https://www.instagram.com/tvssecurity?stkn=MTJzbzVkdnZwbG94dQ==
▶️ YouTube: https://www.youtube.com/@tvs.aisecurity
For bulk orders or commercial vehicle projects, share your required quantity, cable length and equipment details when making an enquiry.
❓ Frequently Asked Questions (FAQs)
🔹 1. What is a 4-pin camera cable used for?
A 4-pin camera cable connects compatible cameras to monitoring or recording equipment. Depending on the system, it may carry video, audio, power and ground signals.
🔹 2. Can a 4-pin cable be used with an MDVR?
Yes, if the cable's connector, pinout, video format and power requirements match the camera and MDVR.
🔹 3. Can I use a 4-pin cable for a truck reverse camera?
It may be suitable for a compatible truck reverse camera and monitor system. Check the connector configuration and electrical specifications first.
🔹 4. Is a 4-pin camera cable suitable for a TFT monitor?
It can be used where the camera and TFT monitor support compatible interfaces. Some monitors require a different connector or an adapter.
🔹 5. What is the difference between a 4-pin male and female connector?
A male connector generally has exposed pins, while a female connector has corresponding sockets. The two can connect when their design and pin arrangement are compatible.
🔹 6. Can this cable be used for buses and trucks?
It can be considered for compatible bus and truck camera installations, including MDVR and reverse camera systems.
🔹 7. What should I check before buying a 4-pin camera cable?
Confirm connector type, pinout, cable length, video format, voltage requirements and compatibility with your camera, MDVR or monitor.
✅ Conclusion
A suitable 4-pin camera cable for MDVR, buses, trucks, reverse cameras and TFT monitors helps connect compatible vehicle camera and display equipment.
Whether you are installing a new vehicle monitoring system, replacing a damaged cable or connecting a rear-view camera, selecting the correct connector and wiring configuration is essential.
📹 Looking for vehicle camera cables and monitoring accessories? Contact TVS Security to discuss your application and confirm product compatibility.
